Touch Bar HUD DFRHUD Notes - macOS 26.3

Lightweight macOS client that flips on the Touch Bar debug HUD by talking to the system XPC service com.apple.accessibility.dfrhud.

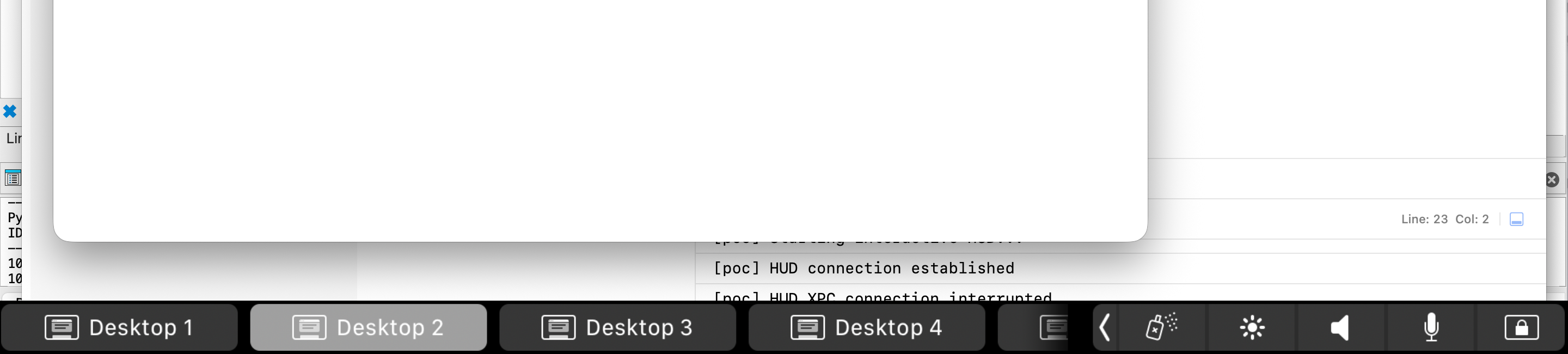

IDA proof

Decompiled -[DFRHUDAppDelegate listener:shouldAcceptNewConnection:]:

bool __cdecl -[DFRHUDAppDelegate listener:shouldAcceptNewConnection:](id self, SEL _, id listener, id conn) {
    id c = objc_retain(conn);
    NSXPCInterface *iface = [NSXPCInterface interfaceWithProtocol:@protocol(UADFRHUDXPCInterface)];
    [c setExportedInterface:iface];
    [c setExportedObject:self];
    [c resume];
    objc_release(c);
    return 1;
}

And the exported protocol (lifted from the binary, mirrored in UADFRHUDXPCInterface.h):

@protocol UADFRHUDXPCInterface
- (void)startDFRInteractiveHUD;
- (void)stopDFRInteractiveHUD;
- (void)toggleDFRInteractiveHUD;
- (void)enableDFRInteractiveHUD;
- (void)disableDFRInteractiveHUD;
- (void)startDFRZoomableHUD;
- (void)stopDFRZoomableHUD;
- (void)toggleDFRZoomableHUD;
- (void)enableDFRZoomableHUD;
- (void)disableDFRZoomableHUD;
@end

Takeaway: any client that knows the protocol can attach and drive the HUD.

PoC behavior

• On launch, the app immediately dials the mach service and calls enableDFRInteractiveHUD + startDFRInteractiveHUD.
• If the XPC link drops, it retries after 1s.
• No UI controls; it’s fire‑and‑forget.

Key snippet from poc/AppDelegate.m:

NSXPCConnection *connection = [[NSXPCConnection alloc]
    initWithMachServiceName:@"com.apple.accessibility.dfrhud"
                     options:0];
connection.remoteObjectInterface = [NSXPCInterface interfaceWithProtocol:@protocol(UADFRHUDXPCInterface)];

__weak typeof(self) weakSelf = self;
connection.invalidationHandler = ^{
    weakSelf.hudConnection = nil;
    dispatch_after(dispatch_time(DISPATCH_TIME_NOW, (int64_t)(1 * NSEC_PER_SEC)), dispatch_get_main_queue(), ^{
        [weakSelf startHudIfNeeded];
    });
};

[connection resume];
id<UADFRHUDXPCInterface> remote = [connection remoteObjectProxyWithErrorHandler:^(NSError *error) {
    NSLog(@"remoteObjectProxy error: %@", error);
}];
[remote enableDFRInteractiveHUD];
[remote startDFRInteractiveHUD];

Reproduction

1. Open poc.xcodeproj in Xcode.
2. Build & run the poc scheme (macOS app). The HUD pops immediately.

Tearing it down

• Quit the poc app first (it auto‑reconnects).
• Then: killall DFRHUD (or killall -9 DFRHUD if it lingers).

Notes / risks

• DFRHUD is a private component; behavior may change across macOS versions.
• Calls are unauthenticated in this build; future OS updates could gate the XPC interface.

Repository

https://github.com/andrd3v/touchbarHUD
